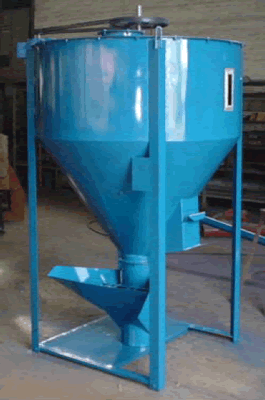

VERTICAL MIXERS
These machines are offered in 3 different models, the ¾, 1 ¼, 2 ½ Ton capacity. The Mixers are very easy to operate. They consist of a central flighting which pulls the product that is been mixed to the top of the mixer where it falls back down to the bottom of the tank, it then starts the cycle again until fully mixed. A mixing cycle takes 10 Minutes, once the mix is complete you start to bag of while running the mixer. The mixers are capable of doing any mix as long as it does not have a high roughage or molasses content. The product must also be below 17 % moisture content. The mixer may be fed via an auger into the top, ( Bulk Ingredient ) and via a bottom swivel hopper ( Additives ).
DETAIL |
¾ TON MIXER |
1 ¼ TON MIXER |
2 ½ TON MIXER |
OVERALL HEIGHT |
2.2 METRE |
2.8 METRE |
2.8 METRE |
TANK DIAMETER |
1.3 METRE |
1.3 METRE |
1.6 METRE |
BASE |
1 x 1 METRE |
1.3 x 1.3 METRE |
1.7 x 1.7 METRE |
HOPPER HEIGHT |
530mm |
620mm |
620mm |
NETT MASS |
330 KG |
373 KG |
420 KG |
MOTOR |
3 KW 380 VOLT |
4 KW 380 VOLT |
7.5 KW 380 VOLT |
A.C Trading offers a full range of spares for these machines.
