Pellet Mills

Pellet Mill - By Hippo Mills and ABC Hansen - Color Blue

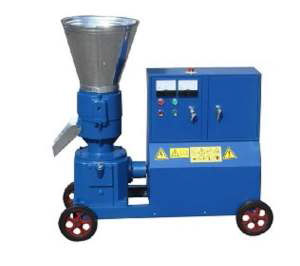

Pellet Mill 200

Pellet Mill 200
Pellet Mill 200
Pellet Mill 200

The ABCHansen MPEL200 Plate mill is a multipurpose pelleting press, that provides an excellent product at a reasonable price, both in capital cost and in maintenance.The simplified flat die system is longer wearing and has a lower replacement cost than the ring die pellet mills common in South Africa. Operation and maintenance is also very simple with all the power being transferred from the motor via a single direct couple gearbox mounted in a cast iron housing. The hopper feed is adjustable to prevent over feeding and blocking of the die, and the integrated into the mill shaft is a cutting mechanism for cutting pellets into similar lengths before exiting the machine. The outlet, as standard, is for a bag off directly from the machine, but can be adjusted to feed into cleated or belt conveyors.

Steam treatment can also be added to produce a harder, more commercial pellet, should the need arise, but for on farm use, or where pellets aren’t transported over long distances, the steam treatment usually isn’t necessary.

Specifications

Height 1000mm
Width 460mm
Length960mm
Weight230kg
Die Sizes 2.5mm-12mm
Number of dies 1
Diameter of dies 200mm
Number of rollers 2
Consumables Rollers, die
Power 7.5KW
Materials Mild steel, cast iron

Indicative capacity

Based on high energy feed: 300kg/hr
Based on high roughage feed: 200kg/hr
Based on sawdust: 100kg/hr

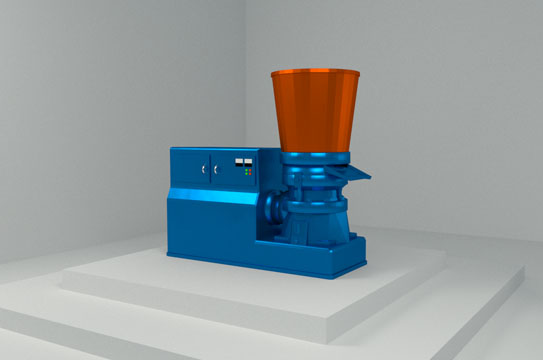

Pellet Mill 260

Pellet Mill 260

Specifications

Power(W) 15kw
Dimension(L*W*H) 122*53*107 cm
Weight: 330 kg
Certification: CE
Capacity: 600-800kg/h
State: Granular
Color: ABCC BLUE
N/G weight: 330/360kg
Packing size: 122x53x107cm
Warranty: 1 year
Main material: Mild steel, alloy steel, cast iron
Pellet diameter: 2.5-10mm
Number of rollers: Two
Die size: 255mm

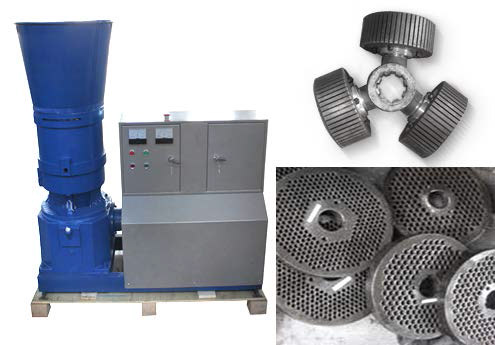

Pellet Mill 400

Pellet Mill 400

The ABCHansen MPEL Plate mill is a multipurpose pelleting press, that provides an excellent product at a reasonable price, both in capital cost and in maintenance.The simplified flat die system is longer wearing and has a lower replacement cost than the ring die pellet mills common in South Africa. Operation and maintenance is also very simple with all the power being transferred from the motor via a single direct couple gearbox mounted in a cast iron housing.

The hopper feed is adjustable to prevent over feeding and blocking of the die, and the integrated into the mill shaft is a cutting mechanism for cutting pellets into similar lengths before exiting the machine. The outlet, as standard, is for a bag off directly from the machine, but can be adjusted to feed into cleated or belt conveyors.

Steam treatment can also be added to produce a harder, more commercial pellet, should the need arise, but for on farm use, or where pellets aren’t transported over long distances, the steam treatment usually isn’t necessary.

Specifications

Height1450mm
Width620mm
Length 1150mm
Weight660kg
Die Sizes 2.5mm-12mm
Number of dies1
Diameter of dies395mm
Number of rollers3
ConsumablesRollers, die
Power30KW
MaterialsMild steel, cast iron

Indicative capacity

Based on high energy feed: 1000-1500kg/hr
Based on high roughage feed: 500-1000kg/hr
